iPhone6 Plus后置摄像头无法照相,免拆CPU修复案例

更新时间:2016-12-27 浏览量:1970


  机器型号:iPhone6 Plus

  故障现象:后置摄像头无法照相

iPhone6 Plus 后置摄像头无法照相故障 图1
iPhone6 Plus 后置摄像头无法照相故障 图1

iPhone6 Plus 后置摄像头无法照相故障 图2
iPhone6 Plus 后置摄像头无法照相故障 图2

  维修过程:

  接客户一台iPhone6 Plus,故障为后置摄像头无法照相。拆机检测,用力按压CPU测试是否虚焊。

iPhone6 Plus 后置摄像头无法照相故障 图3
iPhone6 Plus 后置摄像头无法照相故障 图3

  按压CPU后,发现后置摄像头可正常开启,判断故障为CPU虚焊。

iPhone6 Plus 后置摄像头无法照相故障 图4
iPhone6 Plus 后置摄像头无法照相故障 图4

  使用点位图,在高清显微镜下找到虚焊位置。

iPhone6 Plus 后置摄像头无法照相故障 图5
iPhone6 Plus 后置摄像头无法照相故障 图5

  利用打磨机磨掉上盖。

iPhone6 Plus 后置摄像头无法照相故障 图6
iPhone6 Plus 后置摄像头无法照相故障 图6

  耐心刮出线路,如图,此点是通向CPU的A29脚。

iPhone6 Plus 后置摄像头无法照相故障 图7
iPhone6 Plus 后置摄像头无法照相故障 图7

iPhone6 Plus 后置摄像头无法照相故障 图8
iPhone6 Plus 后置摄像头无法照相故障 图8

iPhone6 Plus 后置摄像头无法照相故障 图9
iPhone6 Plus 后置摄像头无法照相故障 图9

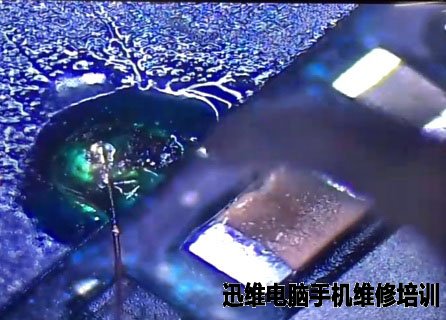

  挖出虚焊点位。

iPhone6 Plus 后置摄像头无法照相故障 图10
iPhone6 Plus 后置摄像头无法照相故障 图10

  接线。

iPhone6 Plus 后置摄像头无法照相故障 图11
iPhone6 Plus 后置摄像头无法照相故障 图11

  使用固化剂固定接线位置。

iPhone6 Plus 后置摄像头无法照相故障 图12
iPhone6 Plus 后置摄像头无法照相故障 图12

iPhone6 Plus 后置摄像头无法照相故障 图13
iPhone6 Plus 后置摄像头无法照相故障 图13

  装机测试,故障完美解决。

iPhone6 Plus 后置摄像头无法照相故障 图14
iPhone6 Plus 后置摄像头无法照相故障 图14

iPhone6 Plus 后置摄像头无法照相故障 图15
iPhone6 Plus 后置摄像头无法照相故障 图15

iPhone6 Plus 后置摄像头无法照相故障 图16
iPhone6 Plus 后置摄像头无法照相故障 图16
