2012最新推出直接加热钢网。459张一套，带游戏机钢片，基本涵盖了目前经常出现的笔记本、主板芯片型号。

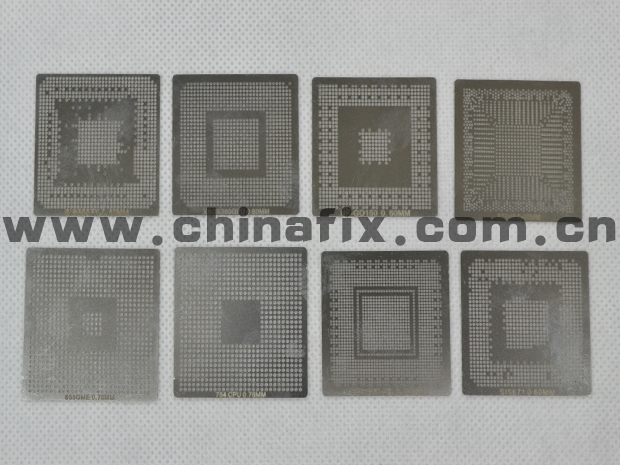

本套BGA钢网采用进口不锈钢板制做,，孔径均匀，无需植球台,配合普通风枪即可手工植球,植球时请均匀受热,以免钢网因过热而变形,本套钢网主要用于笔记本的南北桥及显卡BGA芯片植球， 适用于目前常见的笔记本多种BGA芯片.

进口不锈钢生产。每张都有专人检查后才出厂，质量保证

重要提示：

1：有铅锡珠熔点183摄氏度，合金SN63PB37(锡63%铅37）。

2：无铅锡珠熔点217摄氏度，合金SN96.5AG3CU0.5(锡96.5%银3%铜0.5）。

3：用风枪直接加热的时候，注意调整风枪温度。无需太高温度，否则造成钢网变形。

 #p#BGA钢网 459片（笔记本、主板）直接加热钢网（2）#e#

459片小钢网型号配制表

FOR 0.25MM Soler Ball(1 pcs)
P4933007
FOR 0.30MM Soler Ball(11 pcs)
0.30万用网 (间距0.58MM)
Intel 82801 IUX (AM828001IUX)
SIRF AT640
MTK MT6226/8226
PMB7850
850AZYL
Intel BD 82HM65
L-FW643E-2 新款
LFXP2-5E 新款
1131S2P1X2(平板电脑芯片)
IR 7807A779(7807ZTR芯片名)


FOR 0.35MM Soler Ball(8 pcs)

0.35万用网 (间距0.65MM)
Intel AC82GS45/SLB92/E26593/82HM57/AC82GS965
Intel AF82US15W SLGFQ
Intel AC80566/533
Intel BD82HM55/BD82GM55(BD82HM550)
330-FBGA-1414(新加)
Intel 82801HUB
SRO4S-CPU
FOR 0.4MM Soler Ball(6 pcs)
0.40万用网 (间距0.7MM)
Intel BD82P55
Intel BD82H61
Intel I7-620M
NV MCP79U-B2/nVIDIA GeForce 9400M G(MCP79U)
NV MCP89UZ-A3
FOR 0.45MM Soler Ball(20 pcs)
0.45万用网 (间距0.78MM)
内存 DDR1
内存 DDR2
内存 DDR2-2
内存 DDR2-3
内存 DDR3(XBOX CACHE通用505编号)
内存 DDR5
Intel AC82PM45/AC82GM45//82GL40//AC88CTPM(82PM45//GM45)
Intel AC82P45/AC82P43(82P45)//G41
Intel CG82NM10/SLGXX
PVC0019(PUC-0019)
L110IA07
F2117LP
SR071
内存 DDR3-2
内存 DDR3-3
内存 DDR3-4 KF
18A16GW
NV T20L-H-A1
CC-16ALQDW
FOR 0.5MM Soler Ball(67 pcs)
0.5万用网 (间距0.8MM)
ATI 1100//1150//AMD/216MQA6AVA12FG/038SSP RS485M//RS485MC//RS690M
ATI 21514//M64-M 216PVAVA12FG//215CDABKA15FG//X2600PRO//M74-M//216-0707009通用
ATI 21515//216-0707011//M72-S//M82-S A11//ATI0909SSP//216-0707001/M64-S
ATI 215-0669065
ATI 215-0708003//215-0308003//0803SSP Universal
ATI 215-0719090//216-0728014
ATI 215-0758000
ATI 215-0735003
ATI 216-0728018/通用 ATI 216-0708020//ATI 215-0725018/216-0728020/ATI-HD4570//0725013//0725007/显卡
ATI 218-0697010/218-0697014/218-0792001
ATI 700M//ATI200M//RC415MD//RC415M/216DCP5ALA11FG(ATI X700/64M M26-CSP64 216CZGAKA13FH)
ATI RS800ME//RS600ME(RS600ME 216MEP6CLA14FG)
ATI IXP600//SB600(XP600)
ATI SB700/RD700/RD780//218S7EBLA12FG//216-0674026//216-0674022//AMDIGP
ATI IXP460
ATI E350
ATI X1300-216PQAKA13FG;通用M52-P 216PNAKA13FG
ATI M64-M
ATI AMD-CPU
ATI RS485M/(1150 RS485M 216MSA4ALA12FG) 0.5
ATI 215-0807018
AMD AND-X2-CPU
NV MCP67MV-A2//MCP67M-A2 MCP67D-A3/MCP77MV-A2//MCP87
NV MCP7A-P-B1(MCP7A-P-A1//MCP79S//MCP79M)MCP79MXT-B2
NV NF-6100-430(NF-6100-N-A2//8200//8400//8600)NF-G6100-N-A2
NV NF-200-SL1-A2//BR04-300-A2(NF200-5LI-A2)
NV NF-6801-SL1-N-A2 (NF-6801-SL1)
NV NF-7150-6301-A2 (NF-7150-6301-A2) NF7050//7100//7150
NV GFGO7400-N-A3//GFGO7200//7300//6200AGP//G84(G86)-630-A2//G86-631-A2//G86-620-A2//G86-621-A2
NV GF104-325-A1
NV G94-300-A1//G94-210-A1
NV G96-600-A1//GT215-450-A2(G96-630-A1/C1 G96-750-A1 G96-632-C1)通用G96-309-B1(重要)
NV G200-103-B3(G200-103-B1)
NV GF 106-250-KA-A1
NV NF790IU-SLI-N-B1
NV GF100-030-A3
NV BR03-N-A3
NV NF8200(GF8200-A-A2)
NV N12P-Q3-A1 0.5
NV G96-309-A1
NV G86-631-A2 (新款) 0.5
Intel 965(LE82965//82P965//82P31)G31
Intel QG 82945P//82945GC
Intel QG 82945PM(QG945GM//QG945PM)945GM//QG82945GM
Intel QG 82945GMS(82945GMS/945GMS)
Intel NQ82915GMS(QG 82915GMS)915GMS
Intel LE82PM965//LE82GM965(965GM/PM)
Intel LGA1155
Intel LGA1156
Intel N475CPU
Intel E5099(E50999芯片名)
VIA VX900(新加)
VIA MSPII//VX800U
ATHEROS AR2313A-001
ATHEROS AR2414A-001
雷凌 RT2571W(Ralink2571芯片/RT2573)
Conexant CX82310-14
ST STi7162
S5C2410H11
S5C2410H
NATIONAL 1822-0727
INGENIC 4732HXF(JZ4732HXF-D0)
TI 5416GGU(DVC5416GGU)
TI TMS320DM642A2DK(新加)
XILINX FG900(XCV600E-FG900)
CC-06AP8LW(新加)
FOR 0.6MM Soler Ball(114 pcs)
NV GF-GO6200/7200/7300/7400/7600/G84-630-A2/G86-730-A2/G86-771-A2
NV G80-100-K1-A2(G80-100-K1)/G80-300-A2/8800GTX
NV GO5200
NV GO6800-B1(GO6800-B1)GO7800//GO7900
NV 4200GO(GO4200)
NV NF-4N-A3//NF4-A3(NF4-N-A3)
NV NF-430-N-A3//NF-410-N-A3
NV NF550/NF570
NV NF-G6150-N-A2/NF-G6100-N-A2//NF-6100-A2//SPP-100-N-A2通用(NF-GO6100/6150)
NV NF-GO150
NV 420GO
NV MX440
NV HIS-A4
NV NF 250(NF32-50)/NFORCE3 250GB
NV FXGO5200(FGO5200)
NV FX5700
NV FX5900//GO6800LE
NV NV MCP89M2-A2/MCP89M-ENG-A2(新款) 0.60
NV GO5700 (FX-GO5700) 0.6
NV NF4-SL1-SPP
NV GO 6800/6600
ATI 215-0718020
ATI 215RGMDKA13FG
ATI 218BAPAGA12F
ATI 200M//RS480M//216MPA4AKA22//M64-P
ATI 7500 M7/9000-CSP32 216QTCGBGA13 216QTCFBGA13
ATI 9000 64M//M9-CSP64//216T9NGBGA13FHG
ATI 9000 IGP
ATI 9100 IGP
ATI 9200//9600//9700//X300//X600//X700
ATI 9600-T2
ATI M6-C16(K6-C16)
ATI IXP400//IXP450
ATI X1600/X1650/RV516//X1300//X700//X1400/X1700//M52-P
ATI X1800
ATI R360
ATI RC410MB//AT1200M通用
ATI R480(215RBHAGA11//215RBPAGA11FF)
AMD 215-0716050
VIA CLE266
VIA C7-M
VIA CX700M
VIA VT8235M
VIA VT8235//VT8237//VT8237A
VIA VT8237R(8237R)
VIA VT8237S
VIA VT8251
VIA VX700
VIA P4M898
VIA P4M890/900//CN896//VN896
VIA PN800
VIA K8M890
VIA VT82037R(新款) 0.6
SIS 307ELV(307)
SIS 648FX
SIS 649
SIS 655FX
SIS 661FX(M661MX M661GX)
SIS 662
SIS 671//SIS671DX/SIS672
SIS 756
SIS 964L(964)
SIS 965L(965)
SIS 968
Intel N270-1.60GHZ/512/533-SLB73//AU80586GE025D
Intel 1828-0206//1825-0206//1825-0220
Intel 775CPU
Intel 82801HB(80001HB)
Intel 82801GBM//82801GR//82801GB//NH82801GHM
Intel 82801HBM//82801IBM//NH82801HEM
Intel 82801IB//82801IR//82801IO//82801JIB
Intel 82801FBM
Intel 82801BA
Intel 82915P(QG82915P//NG82915G)
Intel 989
Intel QG5000P(QG500P//QC5000P)
Intel 915PM/915GM(QG82915PM//GM)82915PM
Intel X38(AC82X38)
Intel X58(AC82X58)
Intel RC82540EM
Intel RG82865PE (865PE)
Intel LGA1366(IGA1366)
BROADCOM BCM5464
BROADCOM BCM21000
BROADCOM BCM56639(DCM56639)
BROADCOM BCM6368UKPBG
CB6849
CIZB0003716(CIZBZ0003716)
MTK MT5362BLG
MTK MT5363
MTK MT5388
MTK MT8202AG
ARM MT8520
M1573 A1(M1573 R1)
M1697-AIB
FREEBOAD MPC8270
PIXELWOR PW106B-10L
PIXELWOR PW218-10L
PHI SAA7117AE
TSX188-B1A02-L
62898C2
LSILOGLC 62095D2
XCI5000 676(新加)
XILINX XC3S1000
1009HAL(新加)
Agilent 28V3-0001 KF
S4LHP01 KF
1822-0724 KF
L7D2053 KF
HP 1825-0184 KF
ST X380
0.6(0.9间距)(pitch=0.9mm)Universal Stencil
0.6(1.0间距)(pitch=1.0mm)Universal Stencil
0.6(1.0间距)(pitch=1.1mm)Universal Stencil
FOR 0.76MM Soler Ball(50 pcs)
0.76万用网(1.27间距)
ATI 216-PSZBFA22H 320M/330M/340M/345M Universal(ATI 216PS2BFA22H)
ATI AMD SOKET SI CPU(SOKET SI CPU)
ATI IXP150
ATI 941
ATI M1535+
ATI AM2
ATI AM3
Intel 478CPU
Intel 479/LE80539//SL6F5
Intel 754CPU
Intel 845GL/845GV
Intel 855GM//855GME
Intel 82801EB
Intel 82801AA
Intel 82801DBM/82801DB
Intel 82371EB
Intel M1671(ALIM1671BI)
Intel FW82815EP
Intel RG82875
Intel 845MP/855PM(RG845MP/855PM)
Intel 82801CAM(FW82801CAM) 0.76
SIS 630E/630
SIS 630S
SIS 650
SIS 760LV
SIS 962
VIA K8M800
VIA K8T800
VIA VT82C686B
VIA VT82C694X
VIA VN800
VIA P4M800
VIA PN133(PN133T)
VIA P4X266A
AUO AUO-024
BROADCOM BCM53242
欧美 MCP8245RRZU400D(MCP8245//MCP8245AR)
FREESCAD MPC880
GEENSI FLI18532-LF
PANELPRO T7203
MARVELL 1825-8249
MARVELL 1825-0050
2R39741
NXP/HP 1825-0177
Z71Z46A
BROADCOM BCM3349KPBG
1825-0427 KF
HP 1825-0264 KF
320/330/340
以下为游戏机钢网(42片)
微软 XBOX 360CPU 0.6
微软 XBOX 360GPU 0.6
微软 XBOX 360HANA 0.6
微软 XBOX 360CSP(360 Southbridge) 0.6
微软 XBOX XCPU C-A01
微软 XB360AV 0.6
索尼 PS3-CPU(new model) 0.6
索尼 PS3-GPU(old model) 0.6
索尼 CPS3 CPU BALL
索尼 PS3-CXR714120/CXR714123(PS3-CXD714120) 0.6
索尼 PS3 CXD2964GB 0.6
索尼 PS3 CXD2973GB//2976GB 0.6
任天堂 WII GPUAA(new model) 0.6
任天堂 WII GPU(old model) 0.6
任天堂 WII CPU(new model) 0.6
任天堂 WIICPUB 0.5
索尼 CXD2949CGB 0.76
索尼 CXD2972GB 0.6
索尼 CXD2976GB 0.6
索尼 CXD2980BGB//CXD29808 0.6
索尼 CXD2992GB 0.6
索尼 CXD7203-15 0.76
索尼 CXD9209GB 0.6
索尼 CXD9799GB(CAD9799GP) 0.76
索尼 CXD9833GB 0.76
索尼 CXD1876(CXD1876-102GG)/新加 0.35
索尼 CXD2981GB
PSP PSP-1/5209 (0.3mm Soler Ball)
PSP PSP-2/2975 (0.3mm Soler Ball)
PSP PSP-3 (0.3mm Soler Ball)
PSP PSP-4 (0.3mm Soler Ball)
PSP PS3-5CPU (0.3mm Soler Ball)
PSP PSP-6 (0.3mm Soler Ball)
PSP PSP-7 (0.3mm Soler Ball)
PSP PSP3-1 (0.3mm Soler Ball)
PSP PSP-MB44C018A (0.3mm Soler Ball)
PSP PSP-LR38807 (0.3mm Soler Ball)
PSP 833KM3E (0.3mm Soler Ball)
PSP L8GV7657 (0.3mm Soler Ball)
PSP PSP-Z7-201A(PSP-27-201A) (0.6mm Soler Ball)
索尼 CXD929GB KF
PSP PS3-2 KF

 #p#BGA钢网 最新459片（笔记本、主板）直接加热钢网（3）#e#
万用网(0.25-0.76MM----18片)
0.5MM 35*35万用网 0.78间距
0.5MM 40*40万用网 0.81间距
0.55MM万用网 1.02间距
0.6MM 24*24万用网 0.99间距
0.6MM 27*27万用网 0.99间距
0.6MM 30*30万用网 0.99间距
0.6MM 33*33万用网 0.99间距
0.6MM 41*41万用网 1.01间距
0.65MM万用网 1.0间距
0.76MM 30*30万用网 1.27间距
0.76MM 33*33万用网 1.27间距
0.76MM 34*34万用网 1.27间距
0.76MM 37*37万用网 1.27间距
0.76MM 41*41万用网 1.27间距
1.00MM万用网 1.5间距
0.25MM万用网 0.5间距
0.30MM万用网 0.5间距
0.35MM万用网 0.6间距
以上合计337片报价
MTK/IPHONE4(16PCS)
MTK MTK3301
MTK MTK6205
MTK MTK6217
MTK MTK6218
MTK MTK6219
MTK MTK6223
MTK MTK6225
MTK MTK6226
MTK MTK6228
MTK MTK6230
MTK MTK6231
MTK MTK6235
MTK MTK6238
MTK MTK6318
MTK MTK6325
MTK MTK6600
高通系列(32PCS)
高通MDM0200
X44305BC
MSM7227
PM7540
LC1808B
QS6085
QSC6020
MSM7625
4011
51001582002
MSM7627
高通MSM7225A
VP40584B
F320C3TD
O546MBD
MQ7479FS
TWL3025B2
84UD2238TE-90
PMB6850E
34HF3284
WL3SMPU24
0703FBBA
0407MXMG
A321750b0H
MSM5100
PMB7850E
290L163TE-70
K524626BBCBA050
Abb720ABC2
MIAMI606
F4B9650
7M5012
IPHONE3G 4G 3GS系列新款(45PCS)
iphone cpu A
iphone cpu B
iphone cpu C
iphoneLG3G cpu
iphone 2
iphone GO923
副CPU
主电源
副电源A
副电源B
副电源1
音频IC
小字库
iphone 主电源
iphone苹果 3GS电源
中频IC
3G电源1
iphone cpu F
3GS小cpu
iphone 3Gcpu
iphone A
CPU
iphone cpu E
iphone cpu D
smp31
触摸IC
iphone 触摸IC
功放
码片
指南针IC
升压IC
HTC字库
iphone字库A
iphone字库B
974601174
GO720
iphoneB
iphone多用网
LG3G字库
iphone3GS cpu
大字库
SKY77340
EFIC
WIFI
KMBB18105
IPHONE4S系列(29PCS)
4s 主电源
4s CPU
4s 副CPU
4s 副电源
4s 主A5
4s 小字库
4s 触摸IC
4s WIF 回放
4s 3GS CPU
4s 大字库
4s 电源IC
4s 字库
4s PR8743播放
4s BR2582前摄像
4s 77464后摄像
4s 音频
4s 字库供电指南针
4s 码片
4s 闪光供电
4s A5CPU
4s 小CPU
4s 中频
4s 触摸IC
4s 功放A
4s 功放B
4s 滤波器A
4s 滤波器B
4s-77541语音字库
4s HB52数据库
